TKS

  • Rated Current(F.S.) : 120A ~ 300A
  • Output Signal : +4V ±1% at If
  • Zero Current Offset : Within +3 → +50mV at If = 0
  • Linearity of Output : Within ±1.5% of Vh at If : F.S
  • Supply Voltage : +15V ±5%
  • Response Time : 60㎲ec Max. at di/dt = F.S./㎲ec
  • Frequency Range : DC ~ AC5KHz and 20KHz Max

본문

.

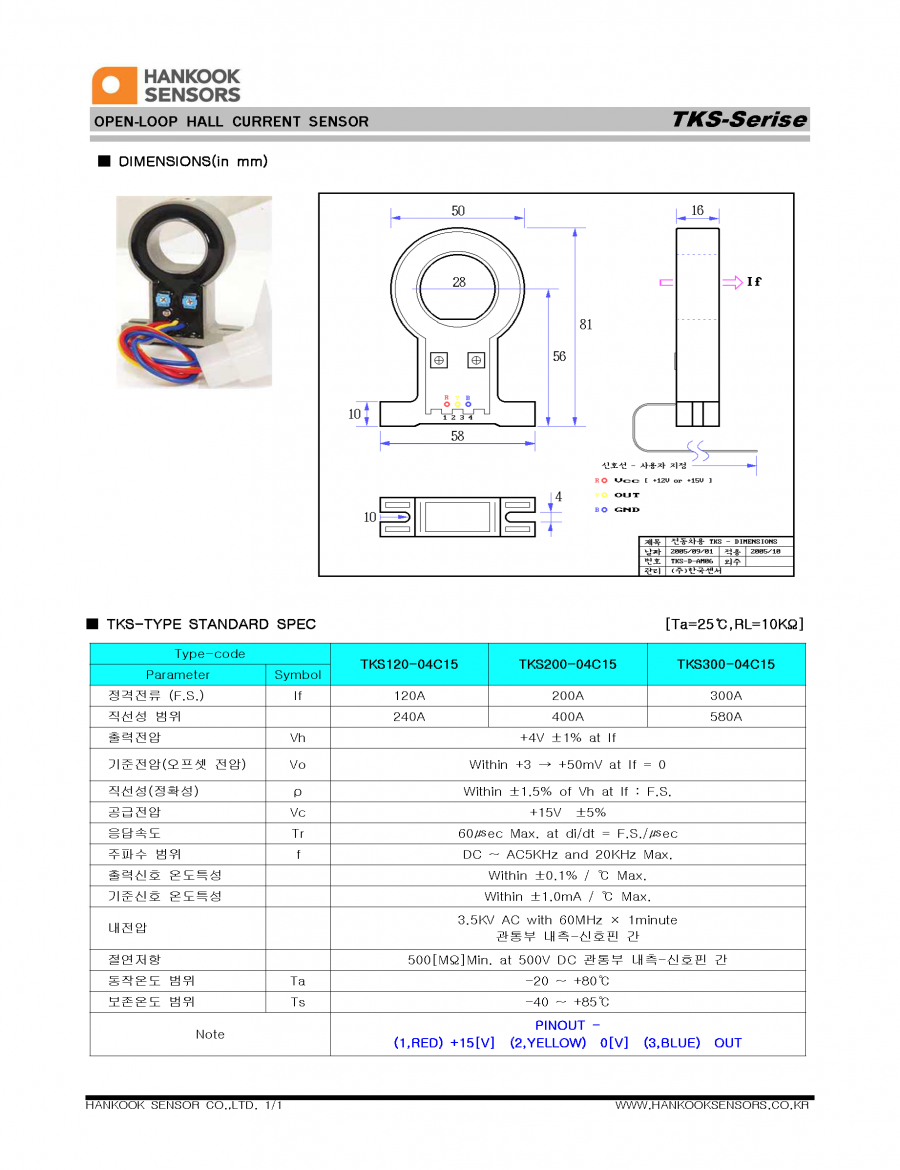

DATA SHEET

  • HS_TKS.pdf (71.5K) 39회 다운로드 | DATE : 2018-06-27 11:31:04
