Total 14 / 1 page

각형 목록

  • 14

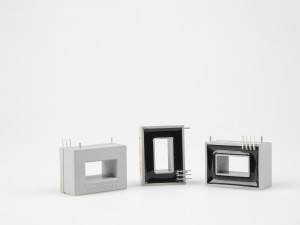

    SM-A,S,R
    Reted Current : 40AT ~ 400AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : 5㎲ ~ 20㎲ Thermal Drift : ±0.1% /℃ 자세히 보기
  • 13
    SM3A
    Rated Current (F.S.) : 40A ~ 500A Output Voltage : ±04V±1% at If Zero Current Offset : Within ±20mV at If = 0 Within ±15mV at If = 0 Linearity of Output : Within ±1.0% of Vh at If : F.S. 자세히 보기
  • 12
    SM3S
    Rated Current (F.S.) : If 100A Output Voltage : +4V ±1% at If Zero Current Offset : Within 25mV at If = 0 Linearity of Output : Within ±1.5% of Vh at If : F.S. Supply Voltage : +05V ( +6V Max ) Response Time : 10㎲ec Max. at di/dt = F.S./㎲ec Frequency Range : DC ~ AC 10kHz 자세히 보기
  • 11
    SM3R
    Rated Current (F.S.) : 40A ~ 400A Output Voltage : Ref.2.5[V]±02V±1.5% at If Zero Current Offset : Ref.2.5[V], Within ±25mV at If = 0 Linearity of Output : Within ±1.5% of Vh at If : F.S. Supply Voltage : +05V Vh - Response Time : 10㎲ec Max. at di/dt = F.S./㎲ec Frequency Range : DC ~ 1KHz ( 10KHz Max.) 자세히 보기
  • 10
    SDR
    Rated Current (F.S.) : ±40A ~ ±600A Output Voltage : (VCC/5)×(2.5+2)[V] ±1.5% at If Zero Current Offset : VCC/2[V], Within ±25mV at If = 0 Linearity of Output : Within ±1.5% of Vh at If : F.S. Supply Voltage : +05V ±5% Vh - Response Time : 2ms Max, 10μs Max Frequency Range : DC ~40Hz, 1kHz Load Resistor : above 4.7KΩ Load Capacitance : 0.33(Min.)-10(Typ.)-1,000(Max.) nF 자세히 보기
  • 9
    BS-A,S
    Reted Current : 200AT ~ 1,500AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : 15㎲ Thermal Drift : ±0.1% /℃ 자세히 보기
  • 8
    BS2CO
    Rated Current(F.S.) : If 1,000A Out Put Voltage : ±220~280mV In Put Current : 10mA Zero Current Offset : ± 5mV Frequency Range : less than DC 1kHz Response Time : 1㎲ec Max. at di/dt = F.S./㎲ec 1,4핀간 Impedance : 380Ω ~ 420Ω 2,3핀간 Impedance : 480Ω ~ 520Ω 자세히 보기
  • 7
    KH-A,S
    Reted Current : 200AT ~ 2,000AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : Thermal Drift : ±0.1% /℃ 자세히 보기
  • 6
    KH2CO
    Rated Current (F.S.) : If ±1,000A Output Voltage : ±250mV ±30mV at If Input Current : 10mA, Standard Zero Current Offset : Within ±5mV at If = 0 Linearity of Output : Within ±1.0% of Vh at If : F.S Response Time : 1㎲ Max. at di/dt = F.S./㎲ Frequency Range : DC ~ 1KHz Max 자세히 보기
  • 5
    KR-A,S
    Reted Current : 400AT ~ 2,500AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : Thermal Drift : ±0.1% /℃ 자세히 보기
  • 4
    KR2CO
    Rated Current (F.S.) : If ±2,000A Output Voltage : ±250mV ±30mV at If Input Current : 10mA, 표준 Zero Current Offset : Within ±5mV at If = 0 Linearity of Output : Within ±1.0% of Vh at If : F.S Response Time : 1㎲ Max. at di/dt = F.S./㎲ Frequency Range : DC ~ 1KHz Max 자세히 보기
  • 3
    KM-A,S
    Reted Current : 400AT ~ 3,000AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : Thermal Drift : ±0.1% /℃ 자세히 보기
  • 2
    KLL-A,S,R
    Reted Current : 600AT ~ 5,000AT DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.5% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : Thermal Drift : ±0.1% /℃ 자세히 보기
  • 1
    KN
    Rated Current (F.S.) : If ±200A - ±15,000A Output Voltage : ±04V ±3.0% at If Zero Current Offset : Within ±20mV at If = 0 Linearity of Output : Within ±1.5% of Vh at If : F.S. Supply Voltage : ±12V or ±15V ±5% Response Time : 15㎲ Max. at di/dt = F.S./㎲ Frequency Range : DC ~ 1KHz and 5KHz Max 자세히 보기
