  • 5

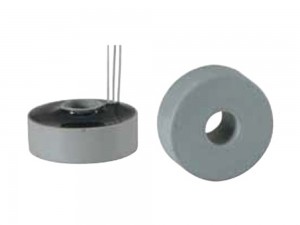

    XM-A,S
    Rated Current (F.S.) : 500mA ~ 1A Output Voltage : ±4V ±1% at If Zero Current Offset : Within ±20mV at If = 0 Linearity of Output : Within ±1.0% of Vh at If : F.S Supply Voltage : ±12V or ±15V ±5% Response Time : 5㎲ec Max. at di/dt = F.S./㎲ec Frequency Range : DC ~ AC25KHz and 50KHz Max 자세히 보기
  • 4

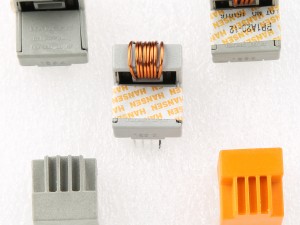

    PP-A,S,R
    Reted Current : 3A, 5A, 10A, 15A, 20A, 25A, 30A, 40A DC or AC Output Signal : ±4V ±1% at If=F.S. Supply Voltage : ±12V or ±15V ±5% Accuracy : ±1.0% at IPN, TA = 25℃ Linearity : ±1.0% of Vh at If = F.S. Response Time : 3㎲ ~ 15㎲ Thermal Drift : ±0.1%/℃ 자세히 보기
  • 3

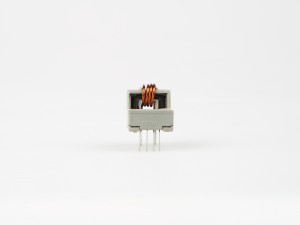

    PX
    Rated Current (F.S.) : 3A ~ 50A Output Voltage : ±04V ±1% at If Zero Current Offset : Within ±30mV at If = 0 Linearity of Output : Within ±1% of Vh at If : F.S Supply Voltage : ±12V or ±15V ±5% Response Time : 5㎲ec Max. at di/dt = F.S./㎲ec Frequency Range : DC ~ 50kHz 자세히 보기
  • 2

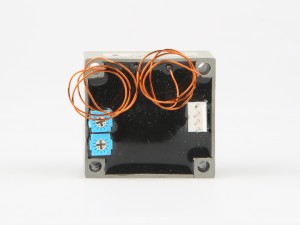

    PY
    Output Voltage : ±04V±1.5% at If Zero Current Offset :Within ±50mV at If = 0 Linearity of Output :Within ±1.5% of Vh at If : F.S. Supply Voltage :±15V ±5% Response Time : 15㎲ec Max. at di/dt = F.S./㎲ec Frequency Range : DC ~ AC25KHz and 50KHz Max 자세히 보기
  • 1

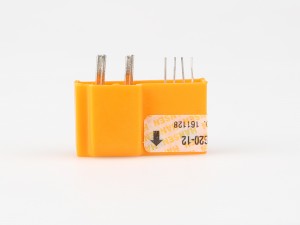

    HR7
    DC Current 측정 (±10A~±40A) 공급전원 : +05V 기준전압 : +1.5V, +2.5V 출력 : ±1.5V, ±2V 자세히 보기
