  • Rated Current(F.S.) : 250A ~ 600A
  • Output Signal : +10V-p ±1% at If
  • Zero Current Offset : Within +3 → +30mV at If = 0
  • Linearity of Output : Within ±1.0% of Vh at If : F.S.
  • Supply Voltage : +15V ±5%
  • Response Time : 20㎲ec Max. at di/dt = F.S./㎲ec
  • Frequency Range : DC ~ AC5KHz and 10KHz Max.

본문

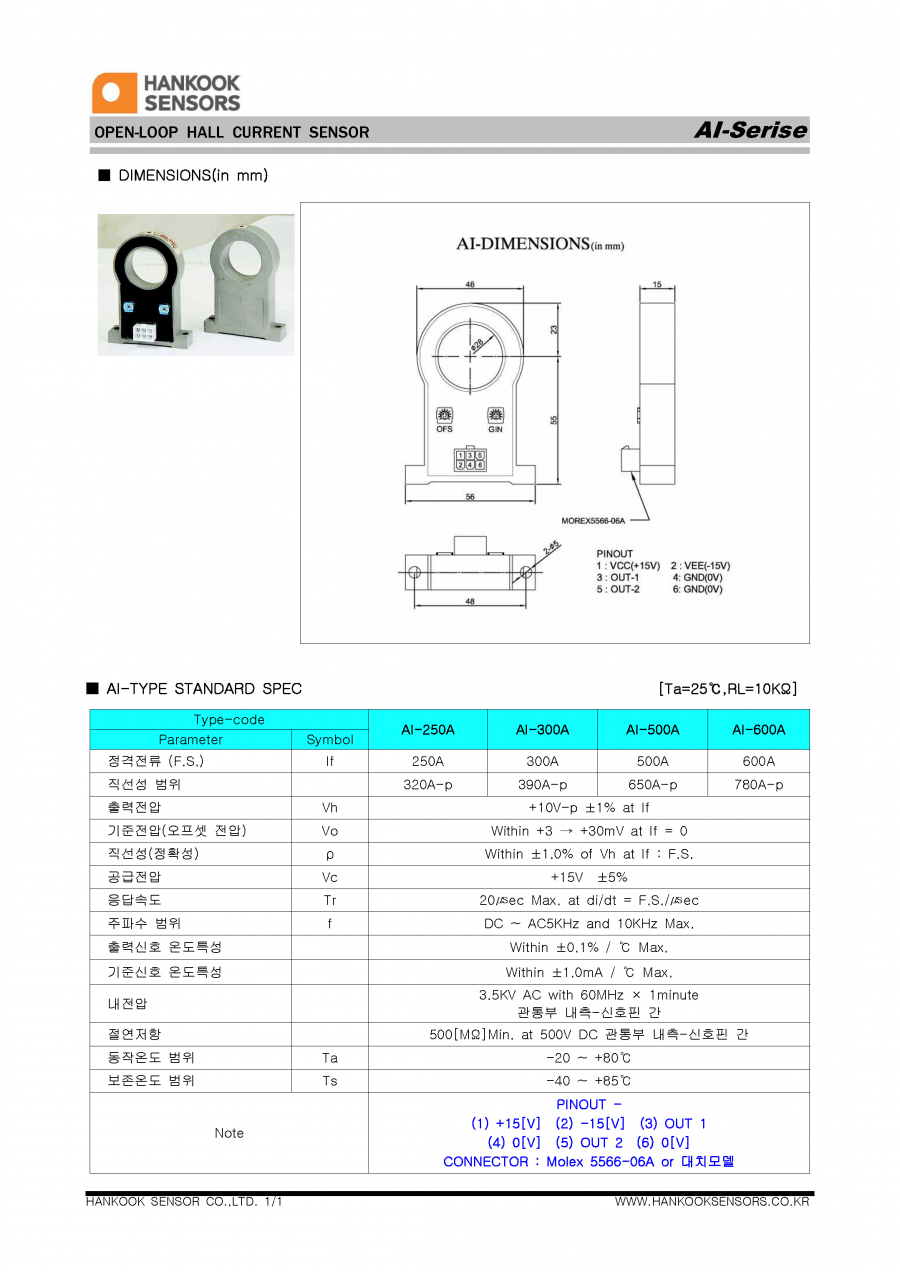

DATA SHEET

  • HS_AI.pdf (105.3K) 43회 다운로드 | DATE : 2018-06-27 11:19:33
