HTC1-A,S,R

  • Rated Current (F.S.) : 200A ~ 900A
  • Output Voltage : ±04V ±3% at If
  • Zero Current Offset : Within ±20mV at If = 0
  • Linearity of Output : Within ±1.0% of Vh at If : F.S
  • Supply Voltage : ±12V or ±15V ±5%
  • Response Time : 7㎲ec Max. at di/dt = F.S./㎲ec
  • Frequency Range : DC ~ 10KHz Max

본문

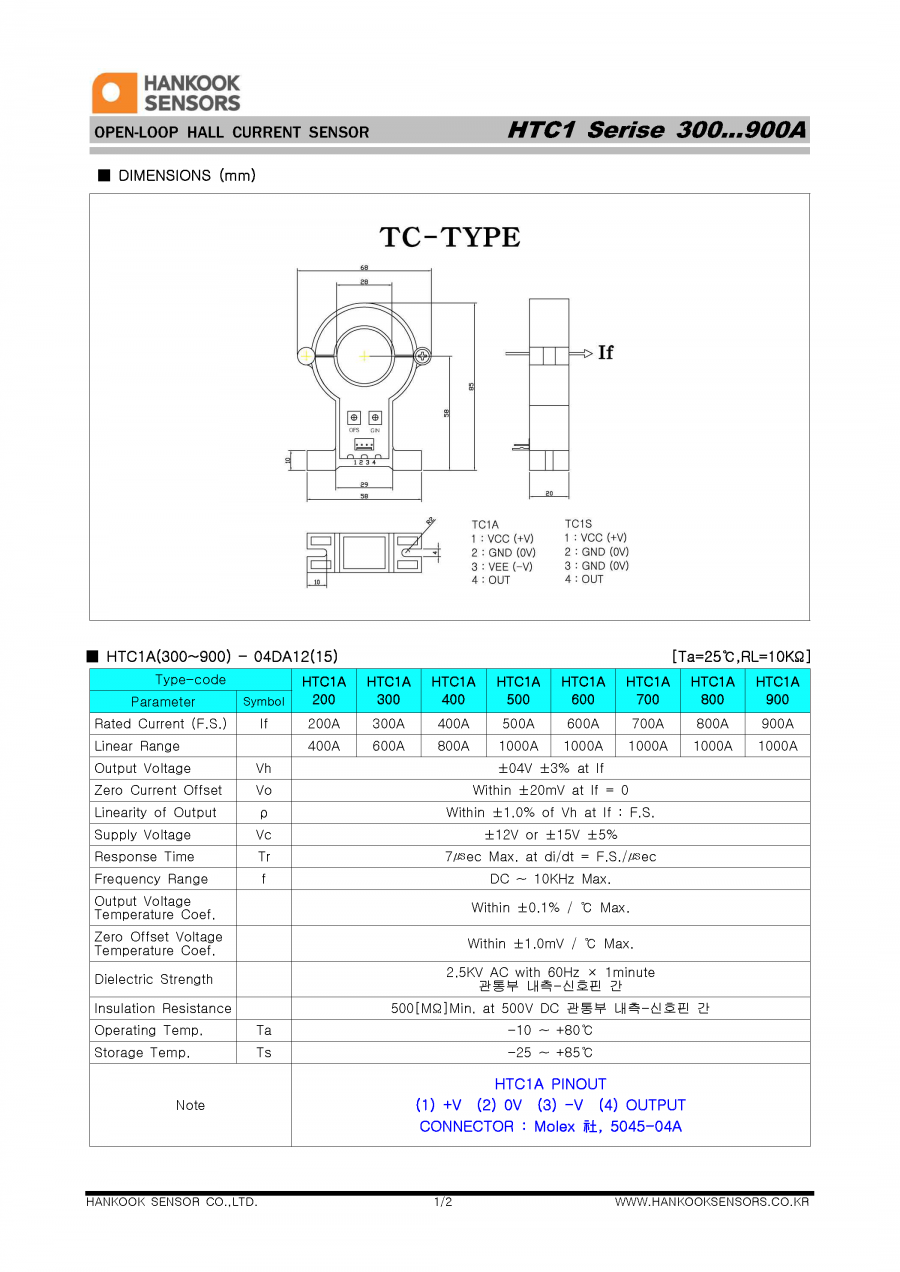

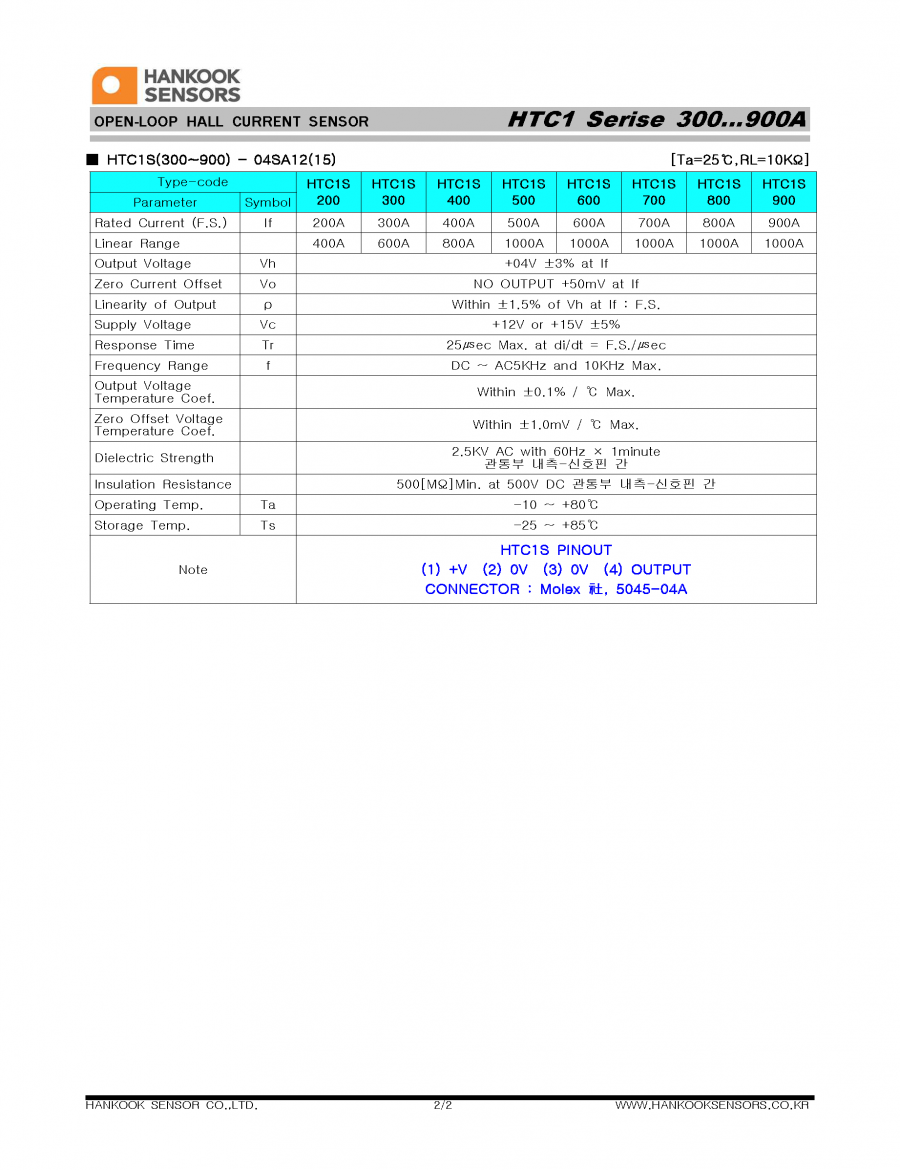

DATA SHEET

  • HTC1.pdf (93.7K) 62회 다운로드 | DATE : 2018-06-27 11:28:33
